Product Description

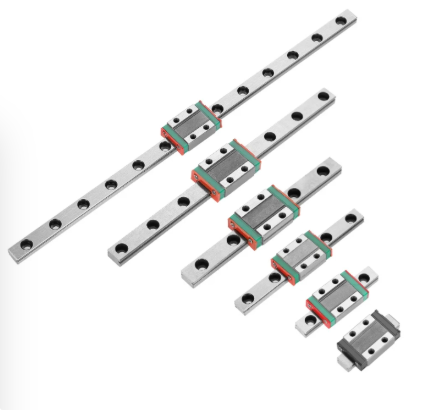

The linear guide with flange block is designed for precise movement of laser cutting machines. It is made of high-quality alloy materials such as S55c, bearing steel and stainless steel, which is durable and has smooth movement.
The system includes guide rails and slides with a length range of 100 to 4000 mm and is suitable for medium loads. It ensures high precision and low noise during operation.
The core component is the bearing steel ball, which enhances wear resistance and reduces friction. It is easy to install and packed in neutral plastic bags and cartons or wooden boxes.
| Parameter | Value |
|---|---|
| Material | Alloy |
| Accuracy Grade | C/H/P |
| Type | High Assembly Type |
| Bearing Material | S55c, Bearing Steel, Carbon Steel, Stainless Steel |
| Motion Structure | Rail + Block |
| Rail Length | 100~4000mm |
| Load Type | Medium Load |
| Core Components | Bearing Steel Balls |
| Performance Features | High Precision, Low Noise |
| Packaging | Neutral Plastic Bag + Carton/ Wooden Box |
| Structure | Drum Crane |
| Installation Type | Full Terrain Crane |
| Drive Type | Gear Rack |
| Running Mode | Moving |
| Special Features | Insulation, Antibacterial, Vacuum, Magnetic, Low Temperature |
| Shipping Packaging | Carton or Wooden Box |
Features of Linear Guide With Flange Block For Laser Cutting Machine
High-quality materials and construction: 12mm linear guide blocks are made of durable steel, ensuring long-lasting and reliable performance in a variety of industrial applications, providing smooth and precise motion.
Wide Industrial Compatibility: Perfect for manufacturing plants, machine repair shops, food and beverage plants, farms, retail stores, construction sites, and energy and mining industries.
Low Friction Resistance and Long Precision Maintenance: The friction resistance is only 1/20 to 1/40 of that of sliding guides, and high precision can be maintained for a long time with the help of the lubrication system.
Advantages of Linear Guide With Flange Block For Laser Cutting Machine
Durability: Made of high-quality bearing steel, it has excellent durability and wear resistance, suitable for heavy industrial applications.
Performance: Provides smooth operation and stable and consistent motion, ideal for precision applications such as grinders, milling machines and lathes.
High positioning accuracy and repeatability: Adopts rolling motion design, low friction coefficient, minimal static and dynamic friction difference, ideal for micron-level feed applications.
Suitable for high-speed operation: Low friction resistance leads to lower drive power and minimal temperature rise when running at high speed.
Easy to install and interchange: Small installation workload, interchangeable with traditional sliding guides, making installation and maintenance easier.
Applications of Linear Guide With Flange Block For Laser Cutting Machine
Garment machinery: used for high-precision guidance in automated textile machinery.
Conveying equipment: Provides reliable motion for manufacturing and logistics conveying systems.
Packaging machinery: Ensures precise and stable motion in packaging equipment.
Electric vehicles: Used in various components of electric vehicles to ensure efficient and smooth operation.
Food machinery: Applied to food processing and packaging systems to maintain operating accuracy.
Mining equipment: Provides reliable motion in harsh mining environments.
Transmission and guidance equipment: Ensure precise and smooth movement in mechanical drive and guidance systems.
FAQs of Linear Guide With Flange Block For Laser Cutting Machine
1. What is the material of Linear Guides with Flange Blocks?
Our Linear Guides with Flange Blocks are made of high-quality alloy steel, ensuring durability and stability in a variety of industrial applications.
2. What industries can linear guides be used for?
It is widely used in manufacturing plants, machinery repair shops, food and beverage plants, farms, construction sites, energy and mining industries.
3. What is the load capacity of this product?
Linear Guides with Flange Blocks are designed to support medium loads and provide reliable performance in heavy-duty environments.
4. What are the main features of Linear Guides with Flange Blocks?
The main features include high precision, low friction resistance and long-lasting performance. The guides also have a low coefficient of friction to maintain their accuracy for a long time.
5. How to install Linear Guides with Flange Blocks?
This product is designed for easy installation with minimal requirements. It also provides interchangeability, making maintenance and installation more convenient.
