Product Description

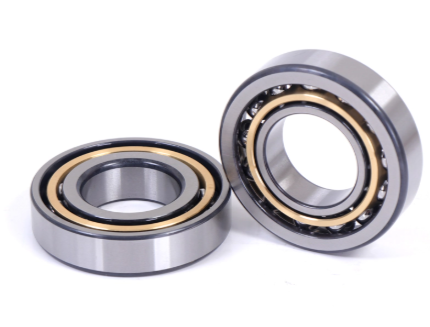

VBA Bearing's single 40° contact angle angular contact ball bearing is designed for high-precision applications. It is ideal for industries that require low noise, high speed and long-lasting performance.
With a 40° contact angle, this bearing provides excellent axial and radial load support. With an inner diameter of 30 mm, an outer diameter of 62 mm and a width of 16 mm, it provides excellent stability and precision.
Made of chrome steel (GCR15), this bearing is durable and can withstand demanding conditions. It has a single RS seal that effectively prevents contamination on one side.
Lubrication is supported by oil or grease to ensure smooth operation. The bearings are also individually packaged for easy transportation and protection. The P4 accuracy grade ensures high precision for special machinery.
This bearing is commonly used in food and beverage plants, machinery repair shops, manufacturing plants, energy and mining industries. It meets the needs of high-speed, high-precision environments and has a long service life.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions | 30mm (Inner Diameter), 62mm (Outer Diameter), 16mm (Width) |
| Contact Angle | 40° |
| Precision Grade | P4 |
| Sealing Type | RS (Single-side Seal) |
| Material | Chromium Steel (GCR15) |
| Weight | 0.2 kg |
| Features | Low Noise, High Precision, High Speed, Long Life |
| Applicable Industries | Food & Beverage, Machinery Repair, Manufacturing, Energy & Mining |
| Lubrication Type | Oil or Grease |
| Packaging | Individual Packaging |
| Minimum Order Quantity | 1 piece |
Features of Single 40° Contact Angle Angular Contact Ball Bearing
Limiting speed: The bearing speed varies according to the lubrication type. It can reach 24,000 rpm with grease lubrication and 32,000 rpm with oil lubrication.
Weight: The bearing weight varies depending on the model. For example, the weight of the 7000C model is 0.019 kg.
Load capacity: This angular contact ball bearing can withstand radial and axial loads. The larger the contact angle, the higher the load capacity of the bearing.
High-speed performance: Suitable for high-speed applications, maintaining stable operation at different speeds.
Advantages of Single 40° Contact Angle Angular Contact Ball Bearing
Single-row design: This bearing can withstand combined radial and axial loads, as well as pure axial loads.
High-speed performance: Designed for high-speed operation, it provides better performance at higher speeds.
High-quality materials: Made of high-quality refined bearing steel GCR15 and other bearing steel grades. Rolling elements can be made of GCR15 steel or ceramic.
Various contact angles: Different contact angles are available: 7000C (15°), 7000AC (25°), 7000AA (26°) and 7000B (40°). Customized contact angles can be produced according to user requirements.
Applications of Single 40° Contact Angle Angular Contact Ball Bearing
Manufacturing plants: Suitable for machines and equipment that require precise performance under radial and axial loads.
Machinery repair shops: Ideal for the repair of high-speed, high-precision machinery.
Construction sites: Suitable for heavy machinery subjected to different loads.
Energy and mining industries: Essential for equipment in high-demand environments that require stability and precision.
Other industries: Can be used in various fields, including advertising companies that require rotating equipment with durable bearings.
FAQs of of Single 40° Contact Angle Angular Contact Ball Bearing
1. What is the main function of a single 40° contact angle angular contact ball bearing?
The bearing is designed to support radial and axial loads, providing high-speed performance and excellent precision.
2. What materials are used in the construction of this bearing?
The bearing is made of high-quality refined GCR15 bearing steel, and the rolling elements are made of GCR15 steel or ceramic for enhanced durability.
3. What contact angles are available for this bearing?
The bearing is available in different contact angles: 7000C (15°), 7000AC (25°), 7000AA (26°) and 7000B (40°). Custom contact angles can be produced upon request.
4. What types of loads can this Angular Contact Ball Bearing accommodate?
The bearing can accommodate combined radial and axial loads, as well as pure axial loads.
5. What industries can benefit from this angular contact ball bearing?
The bearings are suitable for use in manufacturing plants, machine repair shops, construction sites, the energy and mining industries, and other industries that require high-precision bearings.
